16-Input Analog A/V Switcher
Select one of sixteen composite or S-Video sources with stereo audio for one display or receiver, with documented external controls. Choose a hardwood cabinet and an optional polished solid brass 16-button panel.
Designed, built, and shipped from Wyoming.
Made to order · 42 days (6 weeks)
Estimated ship date if ordered today: 2026-11-27
We make every effort to finish and ship earlier. The estimated date allows for production and final checks.
Tax and shipping are calculated before payment. About made-to-order builds.
What it does
Select one of sixteen composite or S-Video and stereo-audio source positions for one output set. The standard design keeps the video formats separate. Confirm control interfaces and source wiring for the selected configuration. Choose your hardwood species, finish, joinery and edge profile. A one-row, 16-button local panel can be ordered with standard or polished solid brass buttons. Compare wood and finishes with the material sample kit before choosing your cabinet.
Compare wood species and finishes before choosing your enclosure with our Hardwood & Finish Sample Kit. Sample kits include credit toward a future eligible wood-product purchase.
Required but not included
- Compatible composite or S-Video sources
- One compatible analog display, receiver, scaler or capture input
- Appropriate source and output video and stereo audio cables
- Separate analog-to-HDMI scaler if the destination has no compatible analog input
- Compatible controller, IR remote or dry-contact panel when those optional control methods are desired
Included
- switcher and compatible regulated power supply
- removable external-control terminal plugs
- quick-start guide, connector/pinout documentation and individual test record supplied with your build
What it does not do
- Confirm the selected controls, power supply and other configuration details before ordering.
- Composite remains composite; S-Video remains S-Video. No conversion between them.
- No HDMI conversion, scaling, deinterlacing, resolution conversion or RF demodulation.
- One selected source feeds one output set. No independent second destination, mixing or picture-in-picture.
- No support for component YPbPr or RGB merely because connectors fit.
- Use the supply and control interfaces specified for your configuration; consult the product reference for connection requirements.
Specifications
Specifications apply to the selected configuration. Estimated values are identified below.

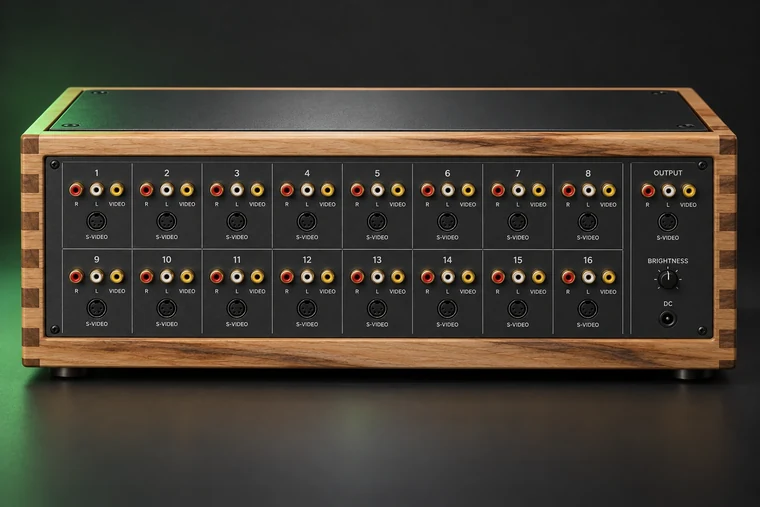

| Inputs | 16 composite, 16 S-Video and 16 stereo analog audio positions |
|---|---|
| Outputs | one composite, one S-Video and one stereo audio set |
| Selection | One numbered source position at a time |
| Video topology | 75 ohm; measured performance pending |
| Local controls | Optional row of 16 numbered input buttons with a selected-input indicator above each button. |
| External controls | RS-232, 16 direct dry-contact selections, IR and Wi-Fi/API |
| Wi-Fi | Temporary setup access point and local setup page; 2.4 GHz controller |
| Network API | versioned local HTTP/JSON API for status and input 1–16 |
| Dry contacts | selection by connecting common ground to input 1–16 |
| Power | regulated 5 V DC; final current and connector polarity pending |
| Dimensions | estimated envelope 17 W × 12 D × 3.5 H inches; not final |
| Production estimate | Made to order; estimated 6 weeks, confirmed with the accepted order. |
| Opening price | $1,069 base; options priced only when available in the configurator. |
| Price basis | $1,069 base; optional controls and accessories are priced separately. |
| Cabinet choices | Hardwood species, clear or stained wood finishes, satin black, piano black or piano red, cabinet joinery, edge profile and optional ebony inlay. |
| Local button panel | Optional single row of 16 numbered input buttons; one small indicator above each button, with only the selected input illuminated. |
| Indicator adjustment | Indicator color selected at order time; rear brightness adjustment knob. |
| Black finishes | Satin black or polished piano black; piano black adds approximately three weeks. We make every effort to ship earlier. |
Design revision 9 · Current product reference.
Options
Choose the available options in Your configuration. Your selection updates the item price and is saved with your order.
What it does
The standard design selects one numbered source position from sixteen composite, S-Video and stereo audio positions. Its corresponding composite, S-Video and stereo outputs feed one destination set. It is intended for collections of retro consoles, VCRs, laserdisc players, cameras and other standard-definition analog equipment.
Commissioned made-to-order build
This made-to-order build is configured for your source equipment and destination. We agree the control interfaces, scope, exclusions and estimated ship date before payment. Material scope changes require your approval or a refund.
Keep each signal in its original format
Connect a composite source to a composite-capable destination and an S-Video source to an S-Video-capable destination. The unit does not synthesize the other format. A separate suitable scaler or converter is required for an HDMI-only display.
Confirm available controls
Confirm availability of local selection, RS-232, dry-contact, infrared and network control for the selected configuration. First-run Wi-Fi uses a temporary setup access point and local page; normal switching is intended to work through a local browser or versioned LAN API without a required cloud account. These interfaces remain subject to the accepted commission scope.
Need more than one destination?
Multiple buffered copies of one selected source and an independently selectable 16×2 router are different designs. They require additional electronics, enclosure space, engineering, testing, price and production time. Request a custom build with source and destination counts, whether outputs must select independently, signal formats and controls.
Order scope
The accepted configuration identifies the controls, included items, exclusions and estimated ship date. Changes to a material part of the order require your approval or an applicable refund.
Shipping
Shipping options and charges are shown before payment. Carrier transit starts after production. The accepted shipping charge is fixed for an unchanged address, configuration and service.
Made-to-order price and scope
Base price $1,069. Estimated production 6 weeks. Exact configuration, included items, exclusions and ship date are agreed before payment.
Cabinet and controls

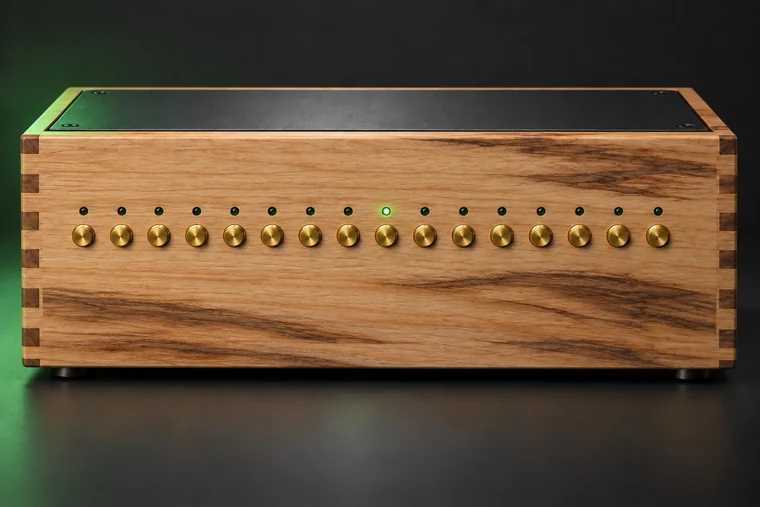

Select a hardwood cabinet, including hickory, with your preferred finish, corner joinery, edge treatment and optional ebony inlay. Satin and piano black are opaque finishes. The optional one-row direct-select panel has 16 numbered buttons, a small indicator above each, and only the selected input is lit. Choose green, amber, red, blue or warm white indicators; a rear knob adjusts brightness. The polished solid brass button panel is hand-machined and polished.
Compare wood before ordering
The material sample kit offers real hardwood and finish samples, including hickory. Its eligible merchandise credit applies to a qualifying switcher order.
Documentation & connections
Find connection details, operating requirements and product information in the reference below.
